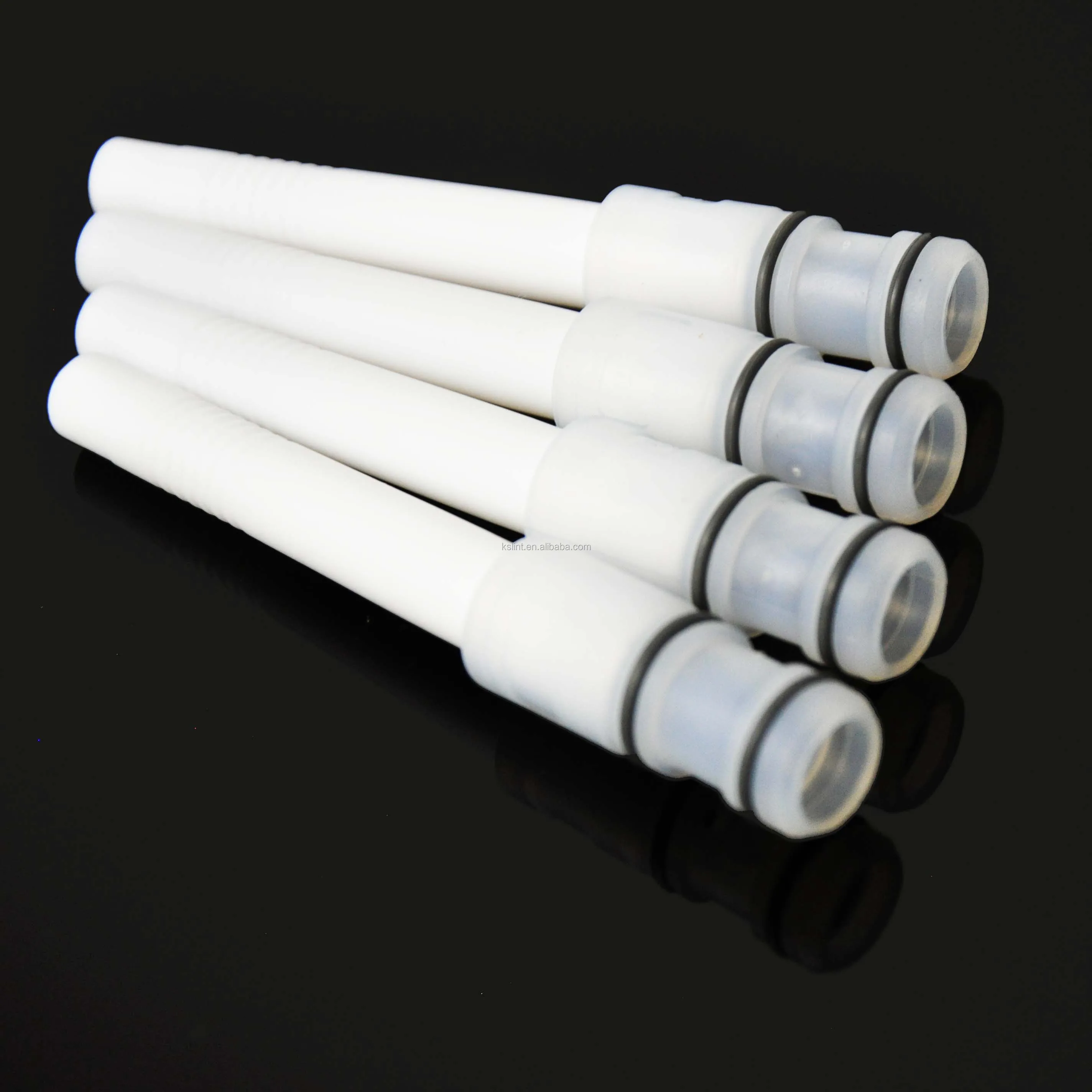

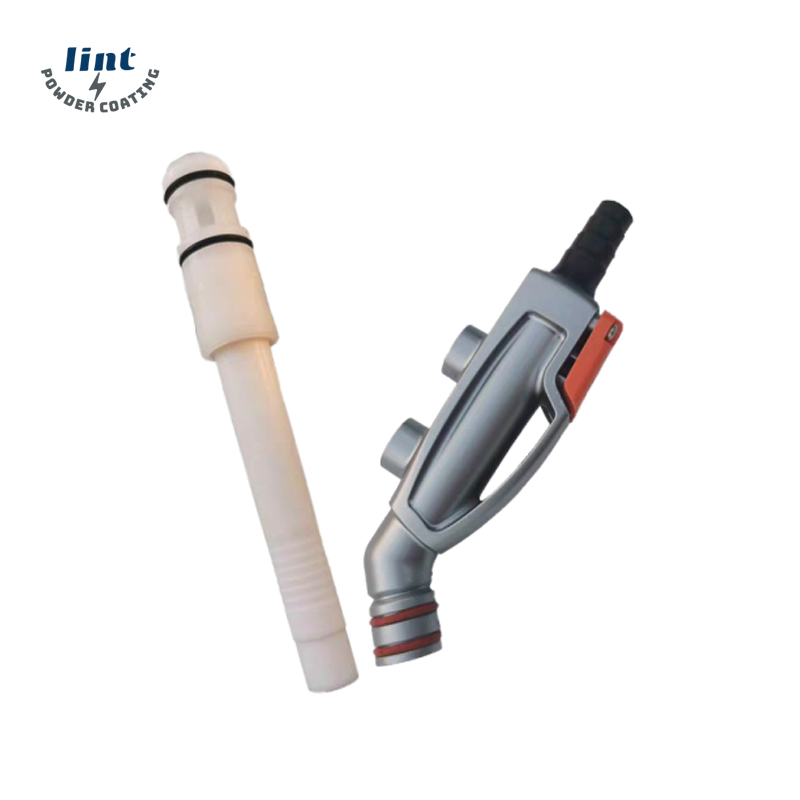

Cartridge – complete 1016561 for Optiflow IG07 powder coating pump

100% interchangable with original parts

Various kinds of product for your choice

Direction for use

Injector parts may be damaged during the cleaning process.

► Clean the component parts with compressed air ;

► Do not use acetone, do not scrape!

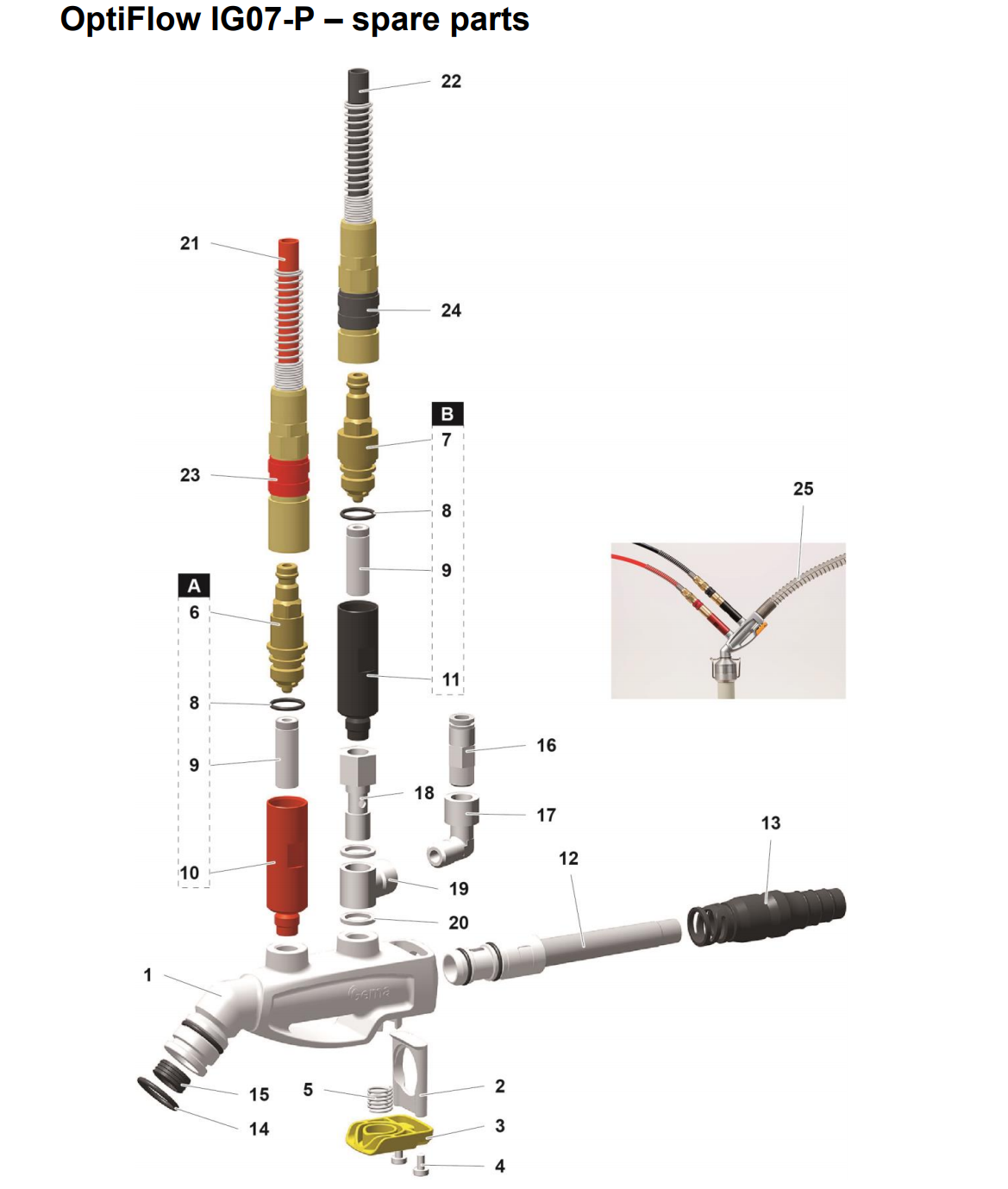

OptiFlow IG07-P – Spare parts list OptiFlow

IG07-P Powder injector – complete (pos. 1-20) 1016 714

A Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and 10) 1015 830

B Supplementary air check valve unit (black marking) – complete
(incl. pos. 7, 8, 9 and 11) 1015 831

1 Injector body – without pos. 14 and 15

1015102

2 Slide gate                                   1015 104

3 Release trigger                            1014 810

4 Screw – M3x6 mm                      1014 812

5 Compression spring                   1014 813

6 Connector (conveying air) – NW 5.5

1004 366

7 Connector (supplementary air) – NW 5.5 1004 367

8 O-ring – Ø 11x1.5 mm 1000 532

9 Filter element 1015 832

10 Body (red) 1015 835 11 Body  (black)           1015 836

12 Cartridge – complete 1016 561#

13 Hose connection – complete (incl. pos. 13.1) 1014 806
